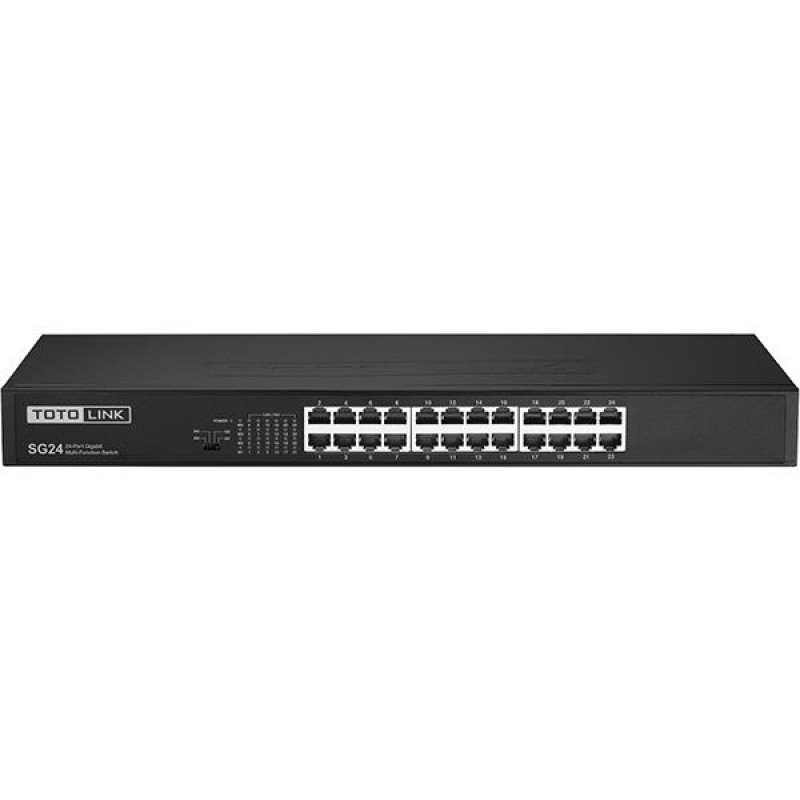

24-Port 10/100/1000 Desktop Unmanaged Rackmount Ethernet Switch Totolink TTL-SG24

SG24 is a 24-port unmanaged switch. It is a smart high performance gigabit switch that provides an ideal solution for workgroup or department Gigabit applications. With 24 10/100/1000BASE-T (AUTO-MDIX) Gigabit Ethernet ports, this switch can provide full bandwidth up to 2000Mbps in full duplex mode. Also it supports easy-to-view LED indicators for cable installation and normal operational diagnostics. It can be installed on desktop or in rack-mount.

Features

Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x standards.
24 10/100/1000Mbps auto-negotiation ports.
Supports flow control for each port.
Supports store and forward switching scheme capability.
Supports NWay auto-negotiation for all ports.
Supports auto MDI/MDIX for each port.
Supports per-port bandwidth control.
Supports PHY register read/write access.

Standards
IEEE 802.3,
IEEE 802.3u,
IEEE 802.3ab,
IEEE 802.3x

Interface: 24*10/100/1000Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)
MAC Address Learning: Auto-learning, auto-aging
MAC Address Table: 8K
Network Media: 10BASE-T: UTP Cat 3, 4, 5 cable (100m, max), 100BASE-TX: UTP Cat 5, 5e or above cable
Four Working Modes:
M1: Flow Control OFF
M2: Flow Control ON
M3: 23/24 Ports Aggregation based on MAC sources
M4: 1-22 Port Isolation, 23~24 Port Uplink.

Frame Filtering:
10Mbps: 14,880pps
100Mbps: 148,800pps
1000Mbps: 1,488,000pps
