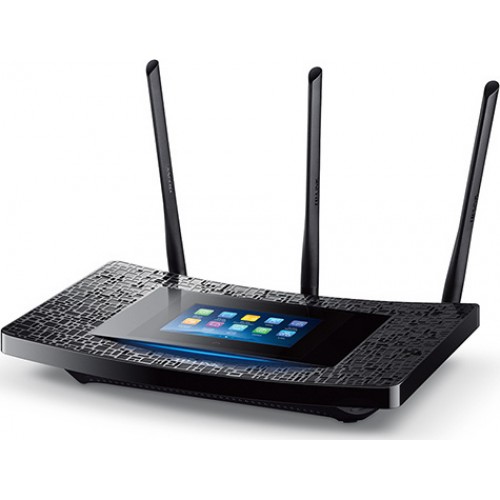

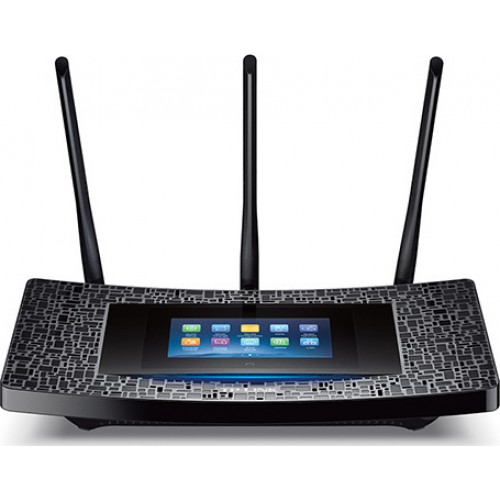

TP-LINK TOUCH P5 V1.0 WIRELESS DUAL BAND TOUCH SCREEN GIGABIT MODEM ROUTER WiFi AC1900 ADSL2+

One-Minute Touchscreen Setup - Effortlessly set up a network and modify settings with the responsive touchscreen

Ease of Use - Manage settings, including parental controls, access policies, mode selection, and more as easy as using an app on smartphone

AC1900 Speed – Enjoy streaming 4K video and online gaming without lag on the 2.4GHz and 5GHz bands

1GHz Dual-Core Processor – Powers through multiple tasks at the same time without interruptions

Superior Coverage – Three dual band antennas with high-powered amplifiers provide up to 10,000* square feet of Wi-Fi coverage

Beamforming – Focuses Wi-Fi towards devices to form stronger connections

Multi-Purpose Design – Serves as a router, repeater, or access point, satisfying your unique needs in any situation

Button Power On/Off Button Reset Button

Certification CE, FCC, RoHS

DHCP Server, Client, DHCP Client List, Address Reservation

Dimensions (284 x 157 x 52)

Dynamic DNS DynDns, NO-IP

Environment • Operating Temperature: 0~40℃ (32℉ ~104℉) • Storage Temperature: -40~70℃ (-40℉ ~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing

External Power Supply 12V/3.3A

Frequency 2.4GHz and 5GHz Band

Guest Network 2.4GHz guest network × 1 5GHz guest network × 1

Interface 4 10/100/1000Mbps LAN Ports, 1 10/100/1000Mbps WAN Port 1 USB 3.0 Port + 1 USB 2.0 Port

Management Access Control Local Management Remote Management

Package Contents • AC 1900 Touch Screen Wi-Fi Gigabit Router Touch P5 • 3 Detachable Antennas • Power Supply Unit • Ethernet Cable • Quick Installation Guide

Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ

Protocol Supports IPv4 and IPv6

Quality of Service WMM, Bandwidth Control

Reception Sensitivity 5GHz: 11a 6Mbps: -94dBm 11a 54Mbps: -75dBm 11ac HT20: -66dBm 11ac HT40: -62dBm 11ac HT80: -59dBm 2.4G: 11g 54Mbps: -76dBm 11n HT20: -73dBm 11n HT40: -71dBm

Signal Rate 1300Mbps at 5GHz, 600Mbps at 2.4GHz

System Requirements • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1,10， Mac OS, NetWare, UNIX or Linux • Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser • Cable or DSL Modem • Subscription with an Internet Service Provider (for Internet access)Windows 8, MAC OS, NetWare, UNIX or Linux

Transmit Power CE: <20dBm(2.4GHz) <23dBm(5GHz) FCC: <30dBm

Type of antenna 3 Dual Band Detachable Antennas

USB Sharing Support Samba(Storage)/FTP Server/Media Server/Print Server

VPN Pass-through PPTP, L2TP, IPSec

Wireless Functions Enable/Disable Wireless Radio, WMM, Wireless Statistics

Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions

Wireless standards IEEE 802.11ac/n/a 5GHz IEEE 802.11b/g/n 2.4GHz + 256QAM

Είδος WAN Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)/Bigpond
