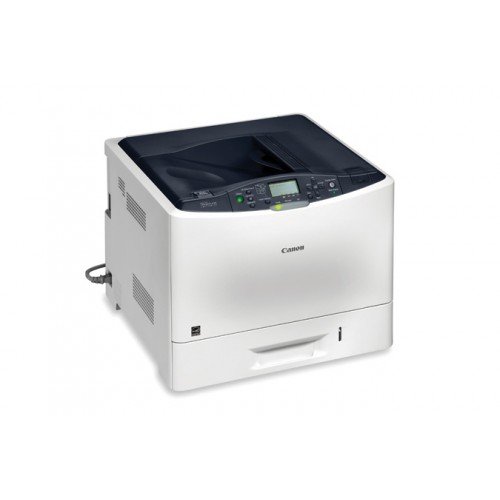

Canon LBP 7780 CX Wireless Colour Lazer Printer Ασύρματος Εκτυπωτής Έγχρωμος

Type

Desktop Page Printer

Printing System

Semiconductor laser + xerographic system

Toner fixing system

On-demand fixing system

Resolution

600 dpi

Printing speed (Plain paper (60 to 105 g/㎡), when printing A4 size paper continuously)

・Black and white printing:
- 32 pages/min. (1-sided printing)
- 27.6 pages/min. / 13.8 sheets/min. (2-sided printing)
・Color printing:
- 32 pages/min. (1-sided printing)
- 27.6 pages/min. / 13.8 sheets/min. (2-sided printing) *1

Warm up time (Time from power on to printer ready)

39 seconds or less *2

Recovery time (Time from the sleep mode to printer ready)

・0 seconds when the printer is in Sleep Mode 1 (the Panel Sleep mode)
・7 seconds when the printer is in Sleep Mode 2 (the Printer Sleep mode)
・30 seconds or less when the printer is in Sleep Mode 3 (the Deep Sleep mode) *3*4

First print time (When performing 1-sided printing on A4 size paper and outputting face-down)

・Black and white printing: 10.2 seconds or less
・Color printing: 10.4 seconds or less*4

Paper size

・Drawer 1
- Standard sizes:
A4, B5, A5, A6, Letter, Executive Statement and 16K
- Custom paper sizes *5:
In case of portrait orientation (only when the UFR II printer driver is used): Short edges 148.0 to 215.9 mm; Long edges 148.0 to 215.9 mm
In case of landscape orientation: Short edges 101.6 to 215.9 mm *6; Long edges 148.0 to 297.0 mm *7
・Drawer 2 (Optional)
- Standard sizes:
A4, B5, A5, Legal, Letter, Executive, Foolscap and 16K
- Custom paper sizes *5
In case of portrait orientation (only when the UFR II printer driver is used): Short edges 210.0 to 215.9 mm; Long edges 210.0 to 215.9 mm
In case of landscape orientation: Short edges 148.0 to 215.9 mm; Long edges 210.0 to 355.6 mm
・Multi-purpose tray
- Standard sizes:
A4, B5, A5, A6, Legal, Letter, Executive, Statement, Foolscap, 16K, Index Card, Envelope DL, Envelope No.10, Envelope ISO-C5, and Envelope Monarch
- Custom paper sizes *5:
In case of portrait orientation (only when the UFR II printer driver is used): Short edges 127.0 to 215.9 mm; Long edges 127.0 to 215.9 mm
In case of landscape orientation: Short edges 76.2 to 215.9 mm; Long edges 127.0 to 355.6 mm

Paper capacity

・Drawer 1: Approx. 500 sheets
・Drawer 2 (Optional): Approx. 500 sheets
・Multi-purpose tray: Approx. 100 sheets

2-sided printing

・Standard sizes:
A4, B5, A5, Legal, Letter, Executive, Foolscap, 16K
・Custom paper sizes:
Short edges 148.0 to 215.9 mm; Long edges 210.0 to 355.6 mm

Paper output

Face-down

Output capacity

Approx. 200 sheets *8

Noise (measured in accordance with ISO 7779, declared noise emission in accordance with ISO 9296)

・LwAd (declared A-weighted sound power level (1 B = 10 dB))
- During standby: 5.3 B or less *9
- During operation: 7.0 B or less
・LpAm (declared A-weighted sound pressure level (bystander position))
- During standby: 32.4 dB *9
- During operation: 52 dB

Operating environment (Printer unit only)

・Operating environment
- Temperature range: 10 to 30°C (50 to 86°F)
- Humidity range: 20 to 80% RH (no condensation)

Power supply

220 to 240 V (±10%), 50/60 Hz (±2 Hz)

Power consumption (at 20°C (68°F))

・Maximum: 1,270 W or less
・Average during operation: Approx. 580 W
・Average during standby: Approx. 35 W
・Average during Panel Sleep Mode (Sleep Mode 1): Approx. 34 W
・Average during Printer Sleep Mode (Sleep Mode 2): Approx. 10 W
・Average during Deep Sleep Mode (Sleep Mode 3): Approx.1 W *3
・When the main power switch is turned OFF: 0.1 W or less *10

Consumables

・Canon toner cartridge (Black) (high capacity)
・Canon toner cartridge (Black) (standard capacity)
・Canon toner cartridge (Yellow)
・Canon toner cartridge (Magenta)
・Canon toner cartridge (Cyan)
・Waste toner container *11

Weight

・Printer unit and included parts
- Printer unit (excluding the toner cartridges and drum cartridge): Approx. 31.0 kg
- Toner cartridge: Approx. 1.0 kg
・Consumables and optional accessories
- Toner cartridge (each standard capacity) (Canon Genuine Cartridge): Approx. 1.0 kg
- Toner cartridge (high capacity) (Canon Genuine Cartridge): Approx. 1.0 kg
- Paper Feeder Unit PF-723A (including the paper drawer): Approx. 8.0 kg

CPU

528 MHz + 264 MHz

Memory (RAM) capacity

768 MB

Host interface

・USB interface:
- Hi-Speed USB (3) (1 front and 2 back)
・Network interface:
- Shared 10BASE-T/100BASE-TX/1000BASE-T (RJ-45)
Full duplex/Half duplex

User interface

・LCD:
- 132 x 65 dots F-STN liquid crystal display
・LED indicator:
- 8
・Operation key:
- 12

ROM slot

1

SD card slot

1

Built-in control command

PCL5c, PCL6, PostScript 3 emulation, UFR II, PDF, and XPS

Built-in fonts

・PCL:
- 93 Scalable fonts, 10 Bitmap fonts *1
・PS:
- 136 standard fonts

Printable area

・PCL5c/PCL6:
Data cannot be printed within a 4.2 mm margin (10 mm margin for envelopes) on all sides of the paper.
・UFR II/PS:
Data cannot be printed within a 5 mm (10 mm for envelopes) margin on all sides of the paper. *2

Network interface

・Supported protocol
- TCP/IP (Frame type: Ethernet II)
- AppleTalk
- NetWare
- SMB (option)
・Print application
- LPD
- RAW
- IPP/IPPS
- FTP
- WSD
