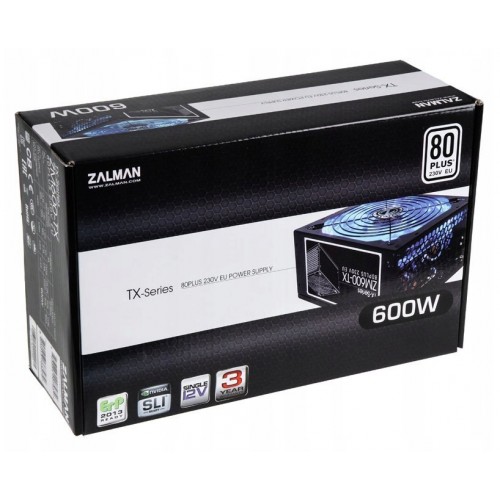

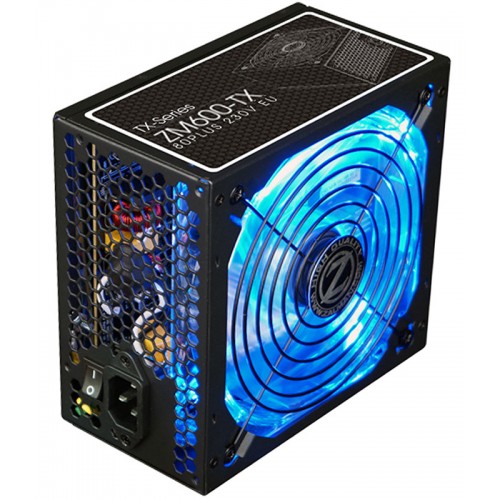

600w Power Supply Zalman ZM600-TX Tower Psu 80Plus Active PFC Led Τροφοδοτικό Υπολογιστή Μαύρο

ZALMAN τροφοδοτικό ZM600-TX, 600W, 80Plus Active PFC, LED

• Built-in Active PFC circuit to provide high power factor and high efficiency
• Dual Forward Converter Circuit designed for stability
• Single+12VDC output design for stabilized voltage supply
• Built-in Over-voltage, Under-voltage, Short-circuit Protection Functions
• Circuit design with DC-DC Converter for +5V and +3.3V
• Low noise 140mm Quiet Blue LED Fan controlled by thermal Cooling System

Τεχνικά Χαρακτηριστικά:

• AC Input Range:
• Voltage: 200 ~ 240VAC ± 10%
• Frequency: 50 ~ 60Hz ± 3
• AC Input Current(Rated)
• Voltage: 200~ 240VAC
• Current:8A
• PFC Type: Active PFC
• Power Factor: Max 98%
• Inrush Current Limit(@ Cold start at 25°C): 115VAC-230VAC Max 100A
• Efficiency: Max 87% @ 230VAC, Typical load
• DC Output Voltage Regulations
• Vout Regulation Range
• +3.3VDC ±5% +3.14 ~ +3.47V
• +5VDC ±5% +4.75 ~ +5.25V
• +12VDC ±5% +11.4 ~ +12.6V
• -12VDC ±10% -10.8 ~ -13.0V
• +5VSB ±5% +4.75 ~ +5.25V
• DC Output Ripple & Noise
• Vout Standard Range
• +3.3VDC 50mV
• +5VDC 50mV
• +12VDC 120mV
• -12VDC 120mV
• +5VSB 50mV
• Temperature
• Operation temperature: 0 ~ 40°C
• Storage temperature: -20 ~ 70°C
• Protection Features: Under Voltage(UVP), Short Circuit(SCP), Over Power(OPP), Over Current (OCP), Over Voltage(OVP)
• Dimensions: 157(L) x 150(W) x 86(H) mm

Weight: 2.1kg
