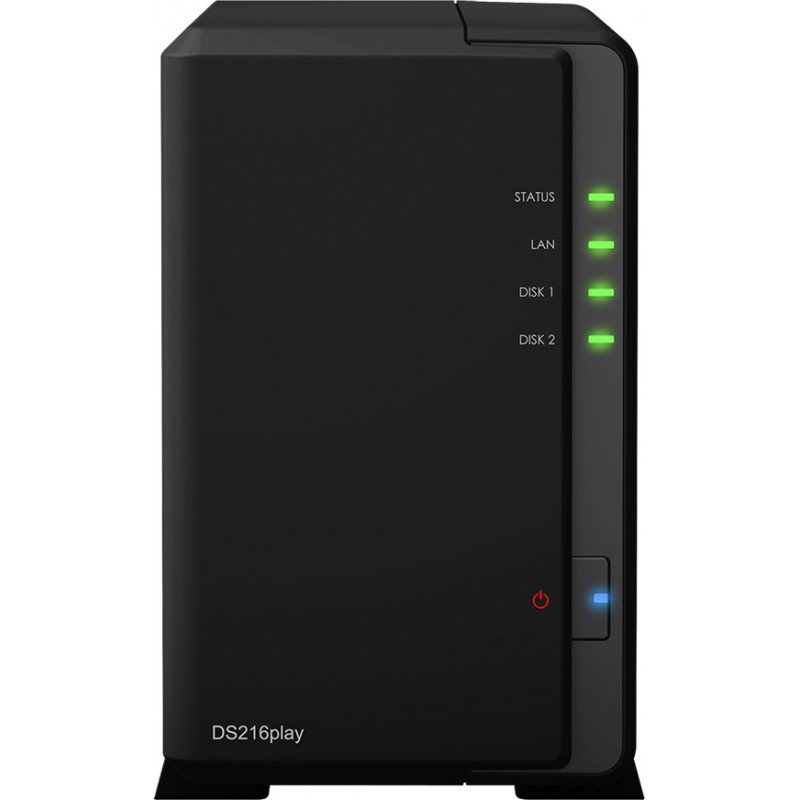

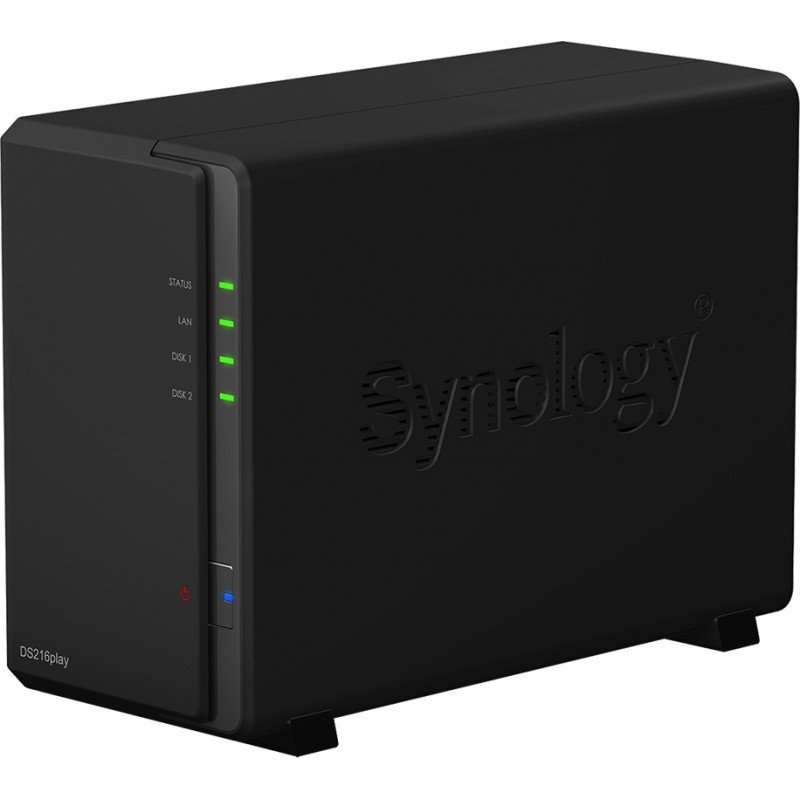

SYNOLOGY DS216PLAY NAS SERVER 2 BAY

SYNOLOGY DS216PLAY NAS SERVER 2 BAY
SYNOLOGY DS216PLAY NAS SERVER 2 BAY
SYNOLOGY DS216PLAY NAS SERVER 2 BAY
SYNOLOGY DS216PLAY NAS SERVER 2 BAY
SYNOLOGY DS216PLAY NAS SERVER 2 BAY
SYNOLOGY DS216PLAY NAS SERVER 2 BAY
SYNOLOGY DS216PLAY NAS SERVER 2 BAY
310,00€
Χωρίς ΦΠΑ: 250,00€
  • Διαθεσιμότητα: Διαθέσιμο
  • Κωδικός Προϊόντος: 13673
Αγορά

Τεχνικά χαρακτηριστικά

CPU

CPU Model STM STiH412

CPU Frequency Dual Core 1.5 GHz

CPU Architecture 32-bit

Floating Point Yes

Hardware Transcoding Engine H.265 (HEVC), MPEG-4 Part 2, MPEG-2, VC-1, Maximum resolution: 4K (3840 x 2160), Maximum FPS: 30

Hardware Encryption Engine Yes

Memory

System Memory 1 GB DDR3

Storage

Drive Bay(s) 2

Compatible Drive Type

3.5" SATA III / SATA II HDD

2.5" SATA III / SATA II HDD (with optional 2.5" Disk Holder)

2.5" SATA III / SATA II SSD (with optional 2.5" Disk Holder)

Maximum Internal Raw Capacity 16 TB (8 TB HDD x 2) (Capacity may vary by RAID types)

Maximum Single Volume Size 16 TB

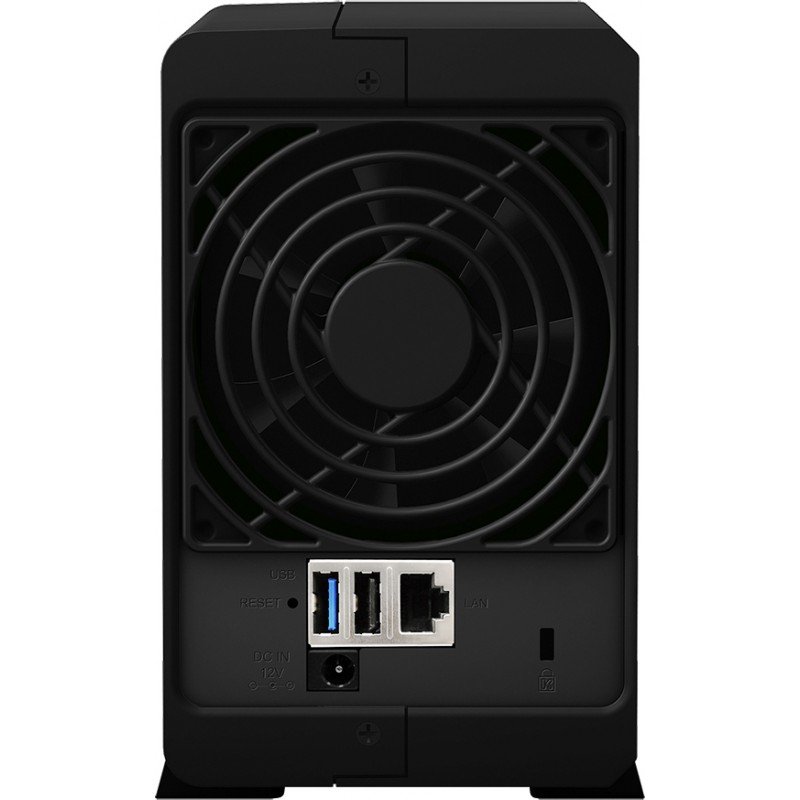

External Ports

USB 2.0 Port 1

USB 3.0 Port 1

File System

Internal Drives

EXT4


External Drives

EXT4

EXT3

FAT

NTFS

HFS+ (Read Only, with max. volume size 2TB)

Appearance

Size (Height X Width X Depth) 165 mm x 100 mm x 225.5 mm

Weight 0.88 kg

Others

RJ-45 1GbE LAN Port 1

Wake on LAN/WAN Yes

System Fan 92 mm x 92 mm x 1 pcs

Fan Speed Mode

Cool Mode

Quiet Mode

Wireless Support (dongle) Yes

Power Recovery Yes

Noise Level 18.5 dB(A)

Scheduled Power On/Off Yes

Power Supply Unit / Adapter 60W

AC Input Power Voltage 100V to 240V AC

Power Frequency 50/60 HZ, Single Phase

Power Consumption 15.08 W (Access)

6.83 W (HDD Hibernation)

Environment Temperature

Operating Temperature 5°C to 35°C (40°F to 95°F)

Storage Temperature -20°C to 60°C (-5°F to 140°F)

Relative Humidity 5% to 95% RH

Certification

FCC Class B

CE Class B

BSMI Class B

Notes

Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).

Support for Wake on WAN needs switch and routers which recognize Magic Packet.

Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

DSM Specifications

Storage Management

Maximum Internal Volume Number

256


Maximum iSCSI Target Number 10

Maximum iSCSI LUN 10

Supported RAID Type

Synology Hybrid RAID

Basic

JBOD

RAID 0

RAID 1

RAID Migration

Basic to RAID 1


Volume Expansion with Larger HDDs

Synology Hybrid RAID

RAID 1

Volume Expansion by Adding a HDD

Synology Hybrid RAID


File Sharing Capacity

Maximum User Accounts 2048

Maximum Groups 256

Maximum Shared Folder 256

Maximum Shared Folder Sync Tasks 4

Maximum Concurrent CIFS/AFP/FTP Connections 256

Windows Access Control List (ACL) Integration Yes

NFS Kerberos Authentication Yes

Log Center Yes

Syslog Events per Second 400

Add-on Packages

Cloud Station Yes

Maximum Concurrent File Transfers 256

Download Station Yes

Maximum Concurrent Download Tasks 50

HiDrive Backup Yes

Media Server Yes

DLNA Compliance Yes

PDF Viewer Yes

Spreadsheet Yes

Surveillance Station Yes

Maximum IP cam (Licenses required) 15 (including 2 Free License) (See All Supported IP Cameras)

Total FPS (H.264)* 450 FPS @ 720p (1280x720)

180 FPS @ 1080p (1920×1080)

110 FPS @ 3M (2048x1536)

80 FPS @ 5M (2591x1944)

Total FPS (MJPEG)* 210 FPS @ 720p (1280x720)

70 FPS @ 1080p (1920×1080)

50 FPS @ 3M (2048x1536)

30 FPS @ 5M (2591x1944)

Video Station Yes

Video Transcoding 4K Group 2

Maximum Transcoding Channel Number 1 channel, 30 FPS @ 4K (3840 x 2160), H.265 (HEVC) or 1 channel, 30 FPS @ 1080p (1920×1080), H.264 (AVC)/H.265 (HEVC)/MPEG-4 Part 2 (XVID, DIVX5)/MPEG-2/VC-1

VPN Server Yes

Maximum Connections 15

Notes Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera.

Environment & Packaging

Environment RoHS Compliant

Packaging Content

Main Unit X 1

Welcome Note X 1

Accessory Pack X 1

AC Power Adapter X 1

RJ-45 LAN Cable X 1

Optional Accessories

Camera License Pack

Disk Holder: Type C

VS360HD

Εγγύηση 2 χρόνια

Γράψτε μια αξιολόγηση

Σημείωση: η HTML δεν επεξεργάζεται!
ΚακήΚαλή
Ετικέτες:synology, ds216play, nas, server, bay
