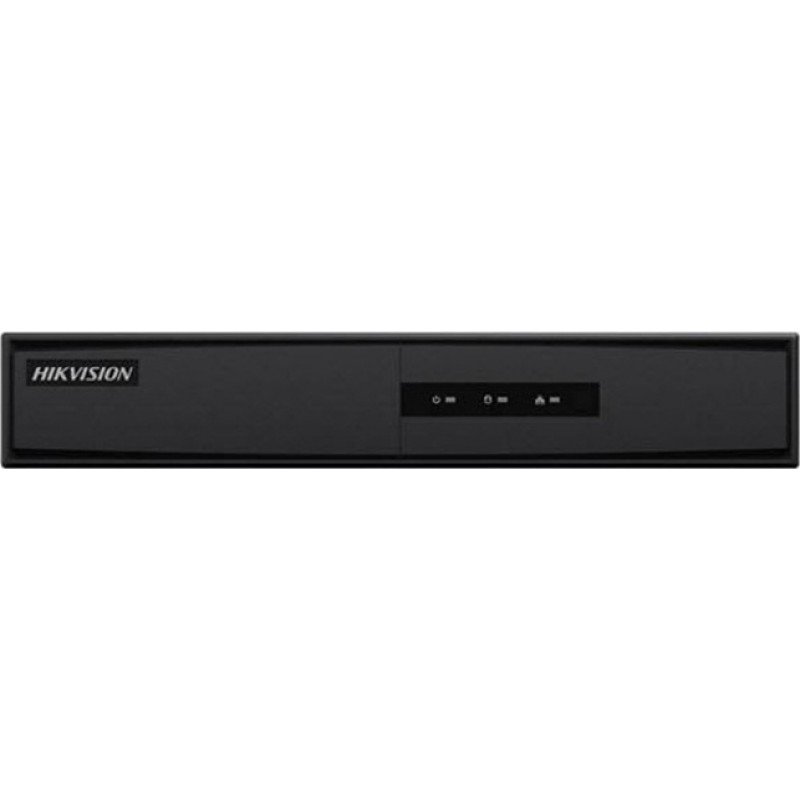

HIKVISION DS-7208HGHI-F1TURBO HD 720 HDTVI DVR 8 CHANNELS HDMI ΚΑΤΑΓΡΑΦΙΚΟ 8 ΚΑΜΕΡΩΝ

HIKVISION DS-7208HGHI-F1TURBO HD 720 HDTVI DVR 8 CHANNELS  HDMI ΚΑΤΑΓΡΑΦΙΚΟ 8 ΚΑΜΕΡΩΝ
HIKVISION DS-7208HGHI-F1TURBO HD 720 HDTVI DVR 8 CHANNELS HDMI ΚΑΤΑΓΡΑΦΙΚΟ 8 ΚΑΜΕΡΩΝ
96,65€
Χωρίς ΦΠΑ: 77,94€
  • Διαθεσιμότητα: Διαθέσιμο
  • Κωδικός Προϊόντος: 13447
Αγορά

HIKVISION DS-7208HGHI-F1 Καταγραφικό 8 καναλιών HD-TVI 720P/25F (+2CH IP/1080P)


Βασικές πληροφορίες

H.264 /H.264+& Dual-stream video compression

Support both HD-TVI /analog/HDCVI and AHD cameras with adaptive access

Full channel recording at up to 720p resolution

HDMI and VGA output at up to 1920×1080P resolution

Long transmission distance over coax cable

Support  8ch synchronous playback at 720P resolution

HDTVI σειρές καμερών C0T και C2T (version Β ή επόμενη) και κοινές αναλογικές κάμερες (CVBS). Οι κάμερες ανά ζεύγος (π.χ. 1-2, 3-4, κ.λ.π.) πρέπει να είναι του ιδίου τύπου (HDTVI ή αναλογικές).

Video/Audio Input

Audio Input: | 1-ch

Video Compression: | H.264,H.264+

Analog and HD-TVI video input: | 8-ch BNC interface (1.0Vp-p, 75 Ω)

Supported camera types: | Support HDTVI input: 720P/25Hz, 720P/30Hz,

Support AHD input: 720P/25Hz, 720P/30Hz,

support HDCVI input: 720P/25Hz, 720P/30Hz,

support CVBS input

IP Video Input: | 2-ch Up to 2MP resolution

Video Input Interface: | BNC (1.0 Vp-p, 75Ω)

Audio Compression: | G.711u

Audio Input Interface: | RCA (2.0 Vp-p, 1 kΩ)

Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)

Video/Audio Output


HDMI/VGA Output: | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz

Recording resolution: | Main stream: 720P / WD1 / 4CIF / VGA / CIF ;Sub-stream: 4CIF (non-real-time) / 2CIF (non-real-time) / CIF

Frame Rate: | Main stream: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

Sub-stream: CIF/QVGA/QCIF@25fps (P)/30fps (N);4CIF/2CIF@6fps

Video Bit Rate: | 32 Kbps ~ 4 Mbps

Stream Type: | Video/Video&Audio

Audio Output: | 1-ch RCA(Linear, 1kΩ)

Audio Bit Rate: | 64kbps

Dual Stream: | Support

Playback Resolution: | 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF

Synchronous Playback: | 8-ch

Network management


Remote connections: | 128

Network protocols: | TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS

Hard Disk Driver

Interface Type: | 1 SATA Interface

Capacity: | Up to 6 TB capacity for each disk

External Interface


Network Interface: | 1; 10M / 100M self-adaptive Ethernet interface

USB Interface: | 2 USB 2.0 Interfaces

General

Power Supply: | 12V DC

Consumption: | ≤ 12W(without hard disks)

Working Temperature: | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF)

Working Humidity: | 10% ~ 90%

Chassis: | 1U chassis

Dimensions: | 260 × 222 × 45mm (10.2 × 8.7 × 1.8 inch)

Weight: | ≤ 1 Kg (2.2 lb) (without hard disks)
