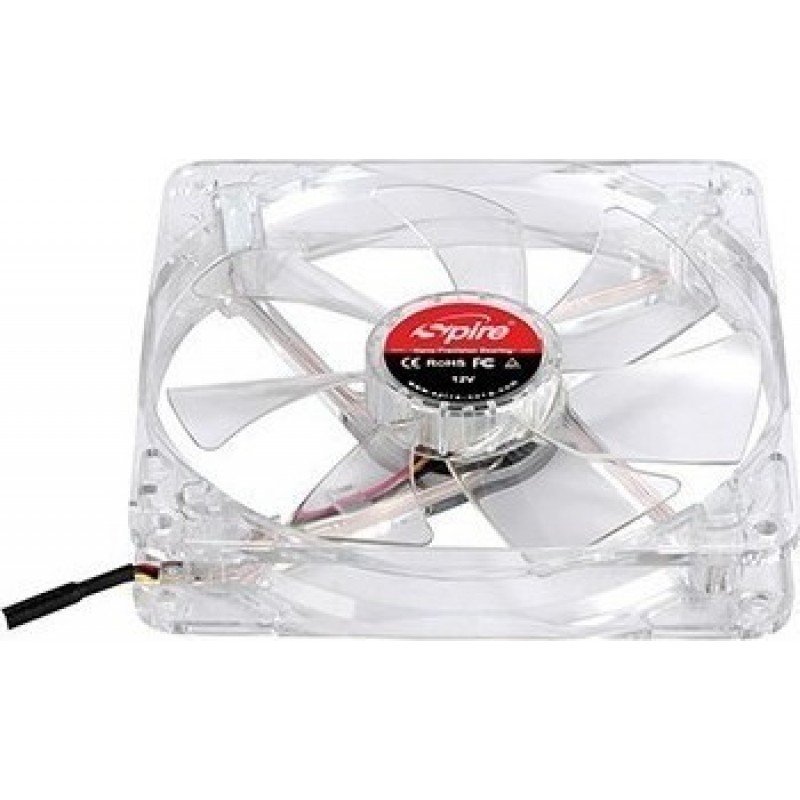

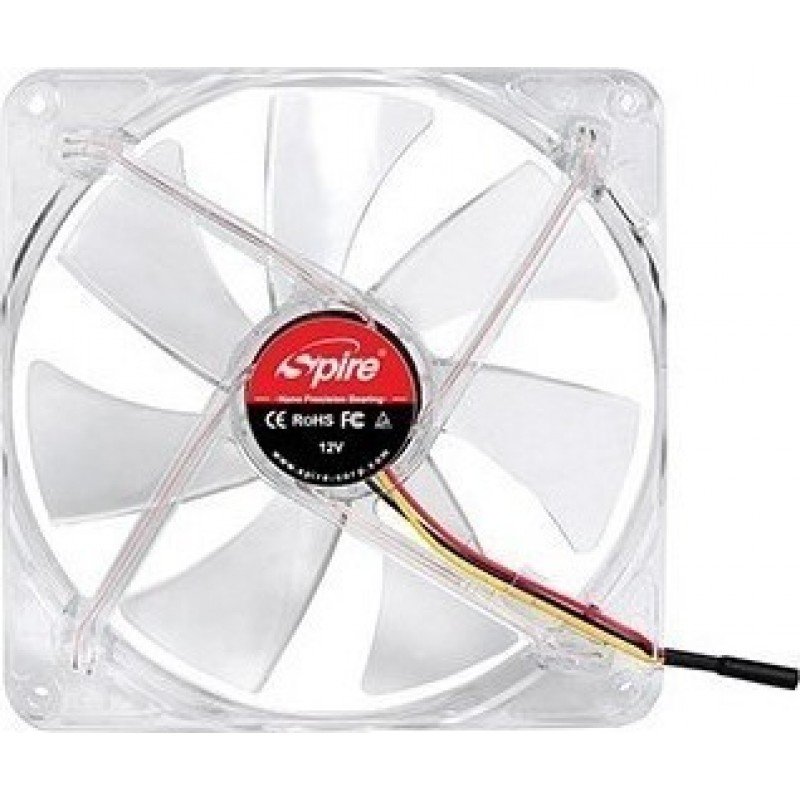

COOLER FAN TRANSPARENT CLEARSTAR 140 140x140x25mm SPIRE SP14025NTL3 NANO TECH BEARING 12V (PC)




- Διαθεσιμότητα: Διαθέσιμο
- Κωδικός Προϊόντος: 13265
CLEARSTAR 140
The ClearStar fan series are silent fan models resulted from years of experience in designing thermal products for the PC and IT industry. Engineers at Spire have created the ClearStar fans to supply sufficient airflow under silent circumstances. The ClearStar fan series contain a new shape of impeller blades and spokes that hold the fan motor. The impeller is elevated to create a greater air intake and to reduce the resistance of spokes which sometimes can cause a high-pitched sound. Build with the proprietary Nano-Tech bearing, Nano-Tech bearing is less friction, easy to start up that will make this fan will spin for a very long time and it will do so silently.
Package Dimension (cm) 15 x 16 x 2.8
Release Date 10 / 16 / 2015
Unit Weight 145g
Unit Dimension (cm) 14.00 x 14.00 x 2.50
AirFlow (CFM) 96
Application
case fan, system fan, consumer electronic cooling and home appliance cooling
Bearing Type Nano Bearing
Certification CE/RoHS/REACH
Color Transparent
Connectors 3 PIN Molex 2510
Fan Size (cm) 14 x 14 x 3
Fan Type DC12V Nano-Tech
LED Color None
Life Expectancy (HRS) 70000H
Material PE
Noise Level (dBA) 21 ~ 22
Operating Temperature (°C) -20 to 70
Packaging Includes
ManualWarranty
information
4 metal mounting screws
Packaging Type Retail box
PWM(Pulse Width Modification) No
Rated Current (A) 0.2
Rated Power (W) 2.4
Rated Speed (RPM) +/- 10% 1500 ~ 1500
Static Pressure mmH2O 1.80
Storage Temperature (°C) -40 to 70
Voltage AC (INPUT) 12V
Warranty 2 years
